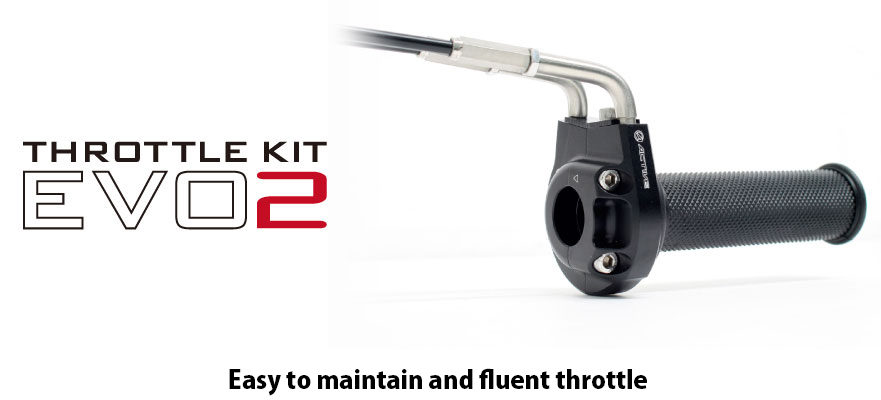

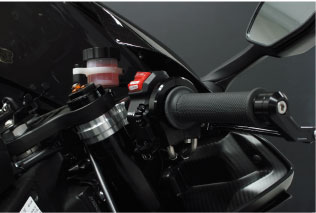

From the feedback from the race teams all over the world,
Active Throttle Kit EVO has achieved drastic EVOlution.

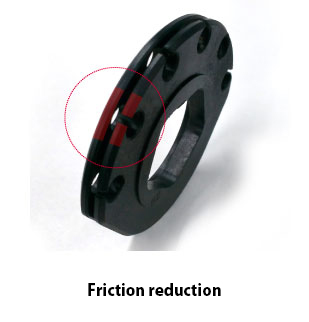

We have re-worked each moving part to produce less friction.
The time you need for installation has improved without reducing maintainability.
|
|
|
|
| |
|
| |
| |
| |
＜＜ Inherit from EVO ＞＞ |
| |
| |
 |
|
 |

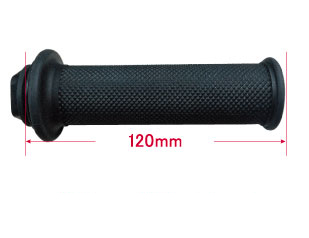

| By reviewing the design of the holder, a general length (120 mm) grip is adopted. |
|

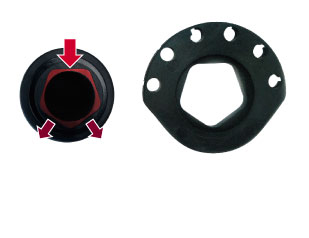

The joint between the bracket and the inner pipe is a pentagon that is excellent in load distribution. |
| |
|
|
| |
|
|
| |
|
|
 |
|
|
The thin holder of 20.9mm that maintains rigidity while eliminating waste realizes a total width of 142.05mm up to the grip edge. |
|
|
|
| |
| |
| |
| |
|
| |
| |
| |
＜＜ Features of EVO2 ＞＞ |
| |
| |
 |
|
 |
| The cable drum holes on the throttle reel has only one side, to reduce the slip of the cable drum and ensure more firm fitting. |
|
Insertion type throttle cable gives you more flexibility in the throttle cable mounting position and direction.
Also, it makes much easier to fix on/remove from the throttle housing, and as a result, throttle cable length adjustment becomes easier. |
| |
|
|
| |
|
|
| |
|
|
 |
|
 |

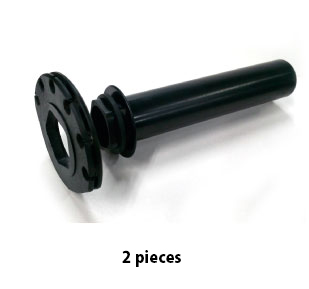

| Throttle reel is detachable and easy to exchange. Also, it doesn't need to remove the rubber grip when exchanging the throttle reel. |
|

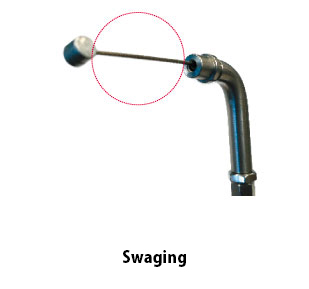

The inner cable is made in stainless steel (SUS304) to prevent from rust, and treated with swaging and smooth finishing to reduce the friction drag. |
|
| |
| |
| |
| |
|
| |
| |
| |
＜＜ Dramatically improved maintainability ＞＞ |
| |
| |
|
＞ |
|
＞ |
Throttle housing can be separated by loosening two bolts. |
|
Throttle cable is slided and removed. |
|
|
|
|
|
|
＞ |
|
|

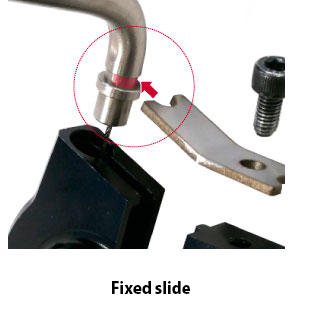

Throttle cable stopper can be removed by loosening one bolt. |
|
Now throttle housing is fully separated. |
|
|
| |
| |
| |
|
| |
| |
| |

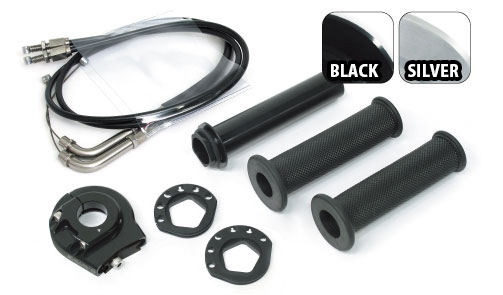

＜＜ KIT ＞＞ |
| |
| |
 |
|

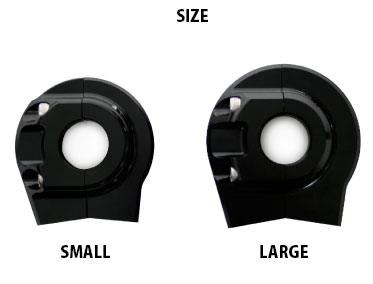

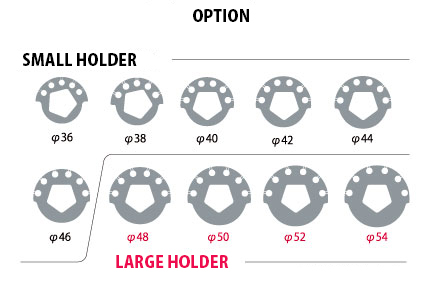

| Throttle holder (large or small) |
| Wire bracket (2 different size) |
| Inner pipe |
| Grip(120mm/set） |
| Throttle cable（stainless） |
| Wire fixing stay & bolt |
|
| |
|
|
| |
 |
|
 |
|
|
|
|
|
|
|
|
|
| |
Housing width |
Throttle pipe length |
Total length |
TYPE-1 |
25mm |
125mm |
150mm |
TYPE-2 |
15mm |
125mm |
140mm |
TYPE-3 |
18mm |
125mm |
143mm |
EVO |
23.5mm |
116mm |
142.2mm |
EVO2 |
20.5mm |
120mm |
142.05mm |
|
 |
|
| |
| |
| |
|
| |
